DB-02R Multifunction Gauge – compact design, includes speed sensor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
- E-marked
- Speedometer to 220 MPH 320KPH
- Tachometer 0 – 20K programmable scale
- White back light
- Clock
- Volt Meter
- Programmable shift light
- Temperature gauge
- Optional Warning Lights (additional cost)
- Fuel Gauge
- 12 volts DC

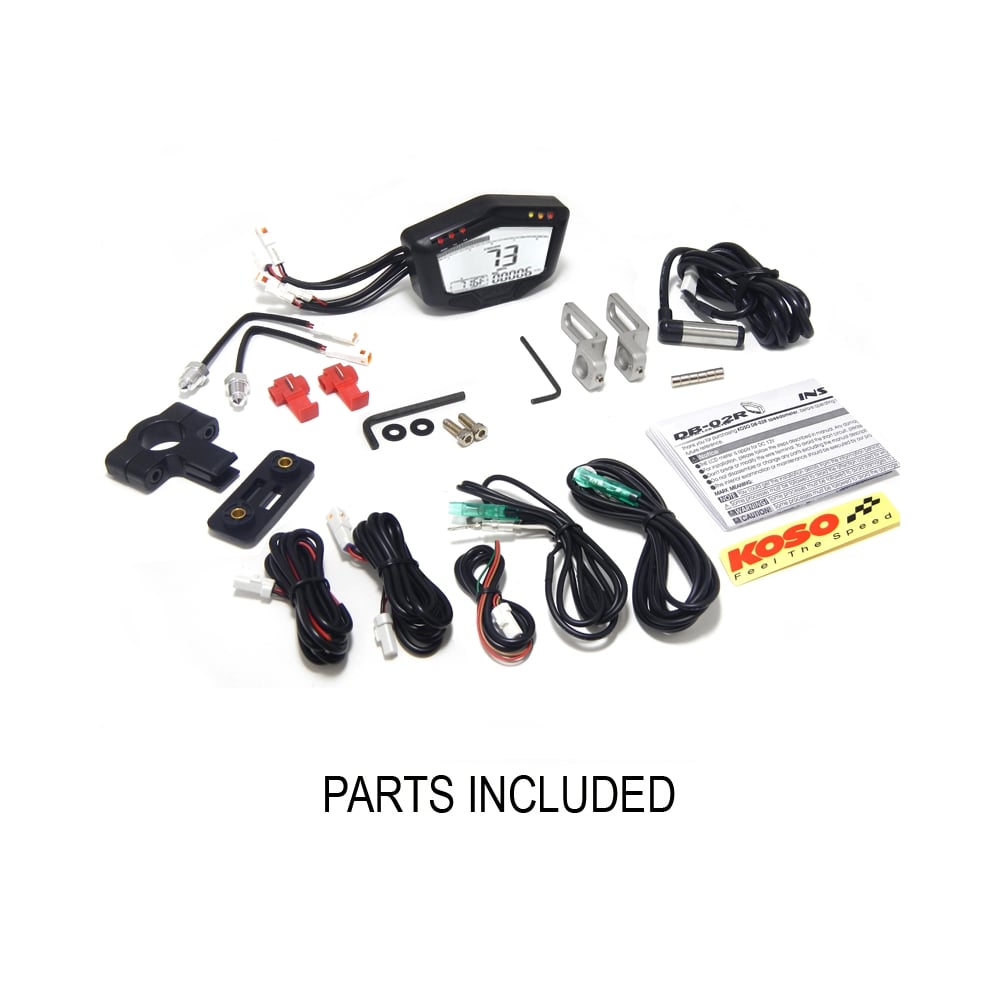

- Includes mounting bracket
- Includes speed sensor & magnets
- Includes wiring diagram & English operating instructions
- Click here for fitting instructions
£158.29
Available on backorder
[wpced]
Share Product :
Facebook
Twitter
LinkedIn
Pinterest
DB-02R Multifunction Gauge – compact design, includes speed sensor
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
- E-marked
- Speedometer to 220 MPH 320KPH
- Tachometer 0 – 20K programmable scale
- White back light
- Clock
- Volt Meter
- Programmable shift light
- Temperature gauge
- Optional Warning Lights (additional cost)
- Fuel Gauge
- 12 volts DC
- Includes mounting bracket
- Includes speed sensor & magnets
- Includes wiring diagram & English operating instructions
- Click here for fitting instructions
£158.29
Available on backorder
[wpced]
Share Product :
Facebook
Twitter
LinkedIn
Pinterest
Suitable for both motorcycles and cars, the DB-02R features a waterproof display with functions for speed, adjustable range RPM, voltmeter, fuel gauge and two temperature gauges with warning lights. A three colour gearshift light completes the set up on this compact gauge.

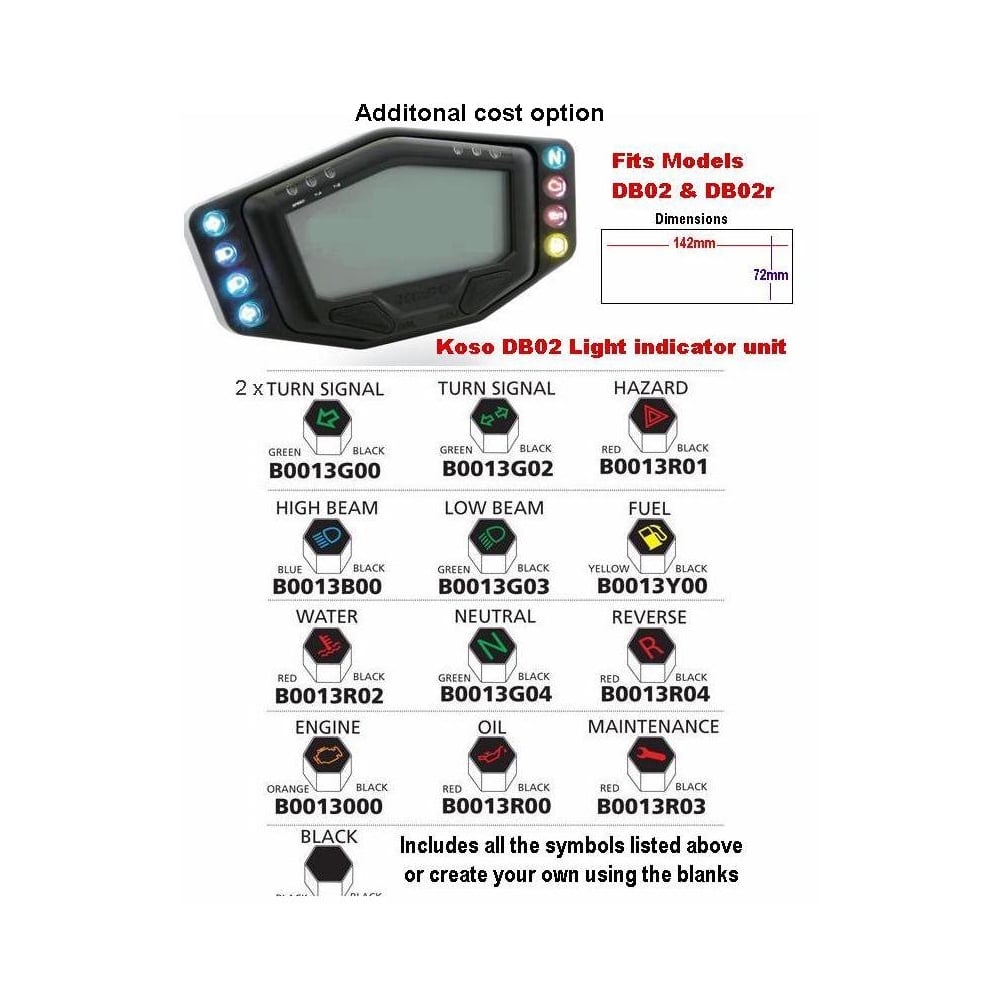

For a little extra you can also purchase the additional warning (idiot) light unit. This has eight positions for warning lights – and a number of pre-configured colour symbols.
/table>
/table>
| Speedometer | Display range：0~360 km/h (0~225 MPH) |
| Display unit：km/h & MPH for alternative | |
| Display internal | <0.5 second |
| Odometer | Display range: 0~99999 km (mile), reset automatically after 0~99999 km (mile) |
| Display unit: 0.1 km (mile) | |
| Trip meter A.B | Display range: 0~999.9 km (mile), reset automatically after 0~999.9 km (mile) |
| Display unit: 0.1 km (mile) | |
| peeding warning light | Setting range：30~360 km/h (19~225 MPH) |
| Display unit：1 km/h (MPH) | |
| Top speed record | Display range：0~360 km/h (0~225 MPH) |
| Tire circumference | Setting range：300~2,500 mm |
| Display unit：1 mm‧Sensor point: 20 | |
| Digital tachometer | Display range：2,000 RPM |
| Display unit：10 RPM | |
| Bar graph tachometer | Display range：10,000 RPM 60 segment bar graph |
| Display unit：166 RPM for each segment | |
| Display range：15,000 RPM 60 segment bar graph | |
| Display unit：250 RPM for each segment | |
| Display range：20,000 RPM 60 segment bar graph | |
| Display unit：333 RPM for each segment | |
| RPM shift light | Display range：5,000~20,000 |
| Display unit：100 RPM | |
| Pre-shift light A/B | Display range：-500~-50,000 before the shift light |
| Display unit：100 RPM | |
| Max. RPM record | Display range：0~20,000 RPM |
| RPM input pulse | Display range：0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6 |
| Total engine hour meter | Display range: 0-999.9 H |
| Display unit: 0.1 H(6 Minutes) | |
| Thermometer | Display unit：℃ & ℉ for alternative |
| Thermometer Aã€B | Display range：0~250℃ (32~482℉) |
| Display unit：0.1℃ (℉) | |
| Display internal | <0.5 second |
| emperature alarm Aã€B | Display range： 60~250℃ (140~482℉) |
| Display unit：1℃ (℉) | |
| TOP temperature record | Setting range：0~250℃ (32~482℉) |
| Fuel meter | Display range: 0~100% |
| Setting range: 100Ω．510Ω no display | |
| Insufficient fuel warning | Setting range：10~50 % |
| Setting unit：10 % | |
| Volt meter | Display range：DC 0~18.0 V |
| Display unit：DC 0.1 V | |
| Target speed timer | Setting range: 30~360 km/h (20~225 MPH) |
| Setting unit: 5 km/h (MPH) | |
| Target distance timer | Setting range: 1/32~30/32 mile (50~1,500 M) |
| Setting unit: 1/32 mile (50 M) | |
| Top speed timer | The record including |
| 1. Speed: 0~360 km/h (0~225 MPH) | |
| 2. Distance: 0~999 M (0~3,280 feet) | |
| 3. RPM: 0~20,000 | |
| 4. Timer: 0~9’59″99 second. | |
| Back light | DC 12V |
| Effective temperature range | -10~+60℃ |
| Meter standard | JIS D 0203 S2 |

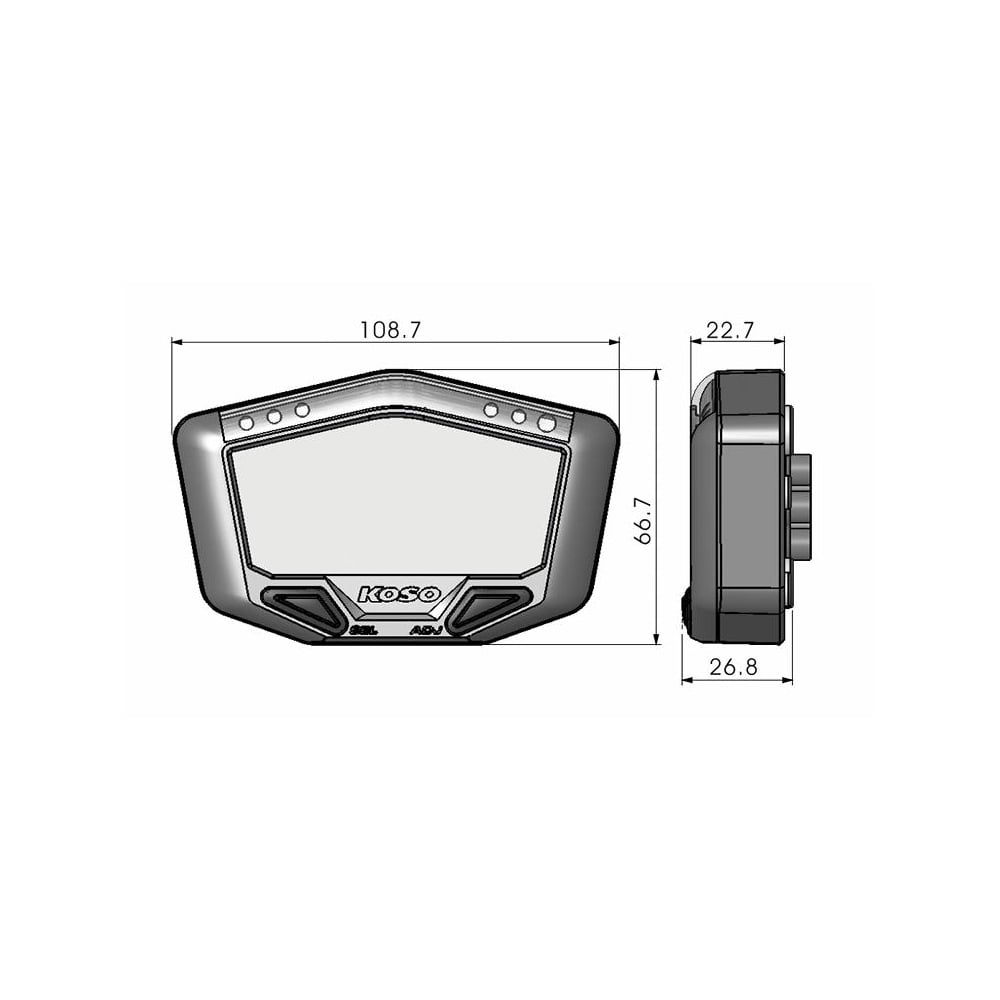

| Meter size | 100 X 60 X 20 mm |
| Meter weight | Around 200 g |
| Telltales | Speeding (RED)．RPM shift light A (Yellow)．RPM Shift light (RED)．Temperature alarm A/B (RED)．RPM shift light B (Orange) |
| Dial Face | LCD / OLED / TFT |
|---|
